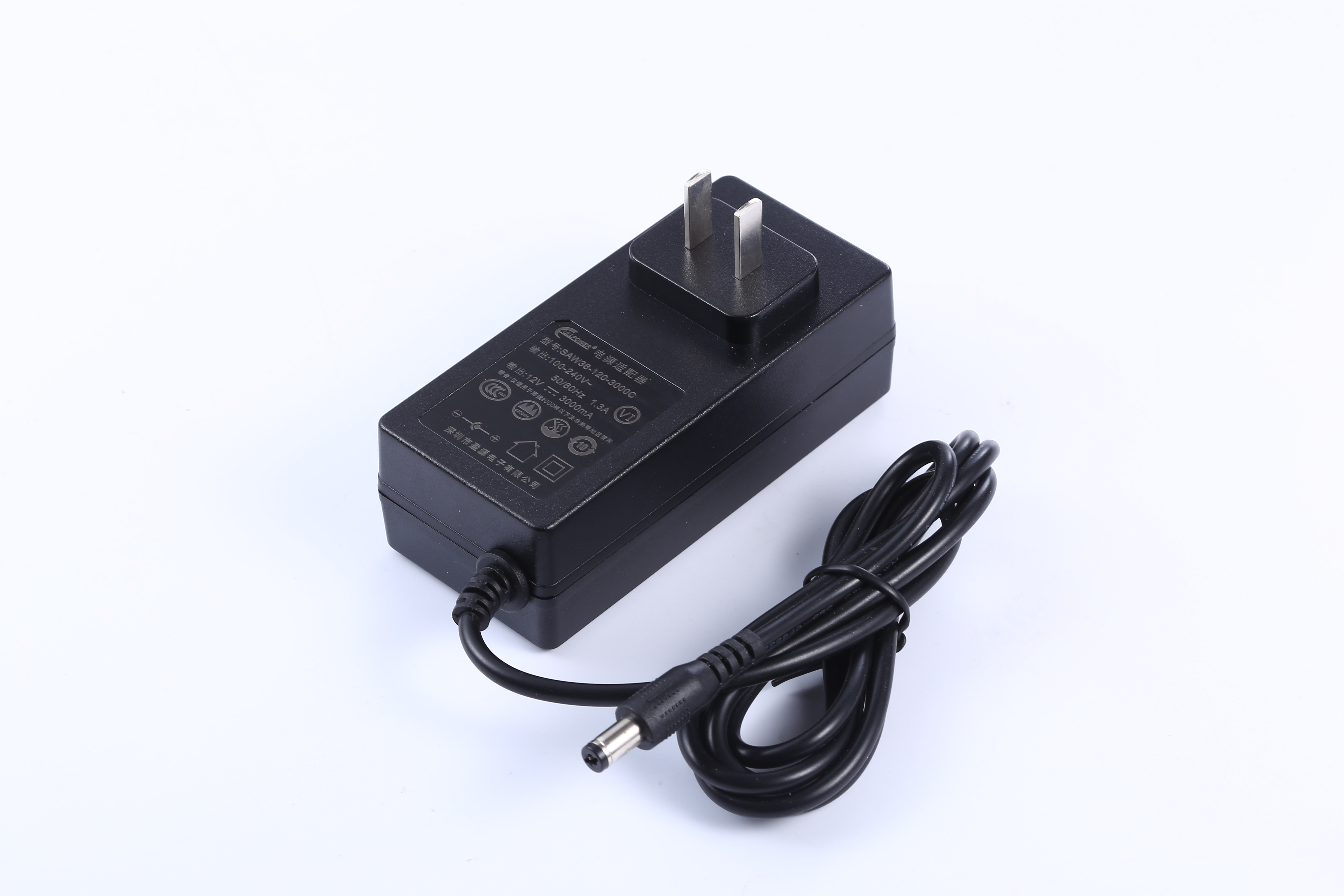

12V 3A 18V 2A 36W AC DC Adapter 24V 1.5 A 5V 5A 9V 3A Level VI Efficiency

Brand Name : Fullpower

Model Number : 16170

Certification : FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc

Place of Origin : China

MOQ : 1000PCS

Payment Terms : T/T, Western Union

Supply Ability : 100000PCS/Day

Delivery Time : 30 working days

Packaging Details : Individul Pe Bag Packing or others

Item : 36W AC DC Power Adapter

Input : 100-240V 50/60HZ

Output : DC 36W Max

Material : ABS+PC

Color : Black, White Or Others

Protection : OCP, OLP, OVP And Others

Logo : Fullpower Or Custom Make

Warranty : 3 Years

Contact Now

36W AC DC Power Adapter

• Max Output Power: 36W

• Typical output: 5V5A 9V3A 12V3A 18V2A 24V1.5A etc

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 30-36 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

v UL

v CB

v FCC

v ROHS

v REACH

 12V 3A 18V 2A 36W AC DC Adapter 24V 1.5 A 5V 5A 9V 3A Level VI Efficiency
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 SAW36-050-5000 5V 5000mA 90mV VI
SAW36-090-3000 9V 3000mA 90mV VI
SAW36-120-3000 12V 3000mA 120mV VI
SAW36-150-2400 15V 2400mA 120mV VI
SAW36-180-2000 18V 2000mA 150mV VI
SAW36-240-1500 24V 1500mA 150mV VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 1.2A Max Standby Power 0.1W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 5V-36V Operating Temperature 10°C~40°C
Output Current Range 100mA-5000mA Cooling Convection
Output Power Range 36W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 97mm *45mm *32mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065


Certifications

12V 3A 18V 2A 36W AC DC Adapter 24V 1.5 A 5V 5A 9V 3A Level VI Efficiency 12V 3A 18V 2A 36W AC DC Adapter 24V 1.5 A 5V 5A 9V 3A Level VI Efficiency

12V 3A 18V 2A 36W AC DC Adapter 24V 1.5 A 5V 5A 9V 3A Level VI Efficiency

Powerful Customers
12V 3A 18V 2A 36W AC DC Adapter 24V 1.5 A 5V 5A 9V 3A Level VI Efficiency

FQA

Q: What is the payment methord ?
A: 1.Small quantity: 100% advanced when we confirm the order.
2. Large quantity: Client need to pay deposit when the order is confirmed, and the balance should be paid before delivery.
3. We accept T/T, Paypal, and Western Union and so on .
Q : what is the lead time ?
A : Samples are 3-5 days . Mass products Usurally 25-30 working days
Q: How about sample? For free?
A: YES! Generally we offer 1-3PCS sample(s) for your test FOR FREE, but you need to bear the freight cost. If your sample quantity is more than 3PCS, we will charge sample fee.
